M2-12R Series

The The Model M2-12R precision pick-up arm is an extension of our popular Series M2 range offering optimum cartridge choice with minimal tracking error and harmonic distortion associated with a 12 inch arm.

Providing classic looks and meticulous build quality, This arm offers all the most important features, traditional 'J' shaped tone-arm, detachable S2-R aluminium headshell with azimuth adjustment, two stage tungsten counterbalance system, superb quality ball race bearings and a level of rigidity to suit all types of cartridge.

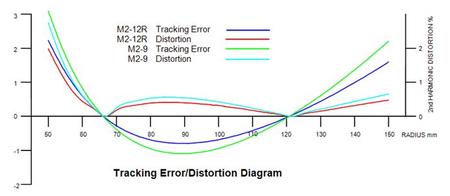

  • The 12in construction with thin walled stainless steel tone-arm takes advantage of the reduction in maximum tracking error/distortion afforded by the greater arm length when compared with 9in models.
  • S2-R Aluminum shell detachable and interchangeable without disturbing cartridge or wiring.
  • Double draw-in pin bayonet fitting design ensures a rigid junction with the tone-arm.
  • Unique headshell to tone-arm coupling readily allows cartridge azimuth adjustment.
  • Internal constrained layer damps minute residual vibrations making tone-arm acoustically inert.
  • Stainless steel cross shaft, ground and thread ground. Carried in a substantial yoke on 10mm precision ball races.
  • Stainless steel vertical shaft, ground and thread ground, with integral 16mm diameter flange to couple shaft and yoke.
  • 23mm diameter steel pillar, heat treated, ground and honed, carries two 17mm precision ball races, widely spaced to resist tilt.
  • Anti-skate control operates through Anti-Skate weight and filament, adjustable up to 5g VTF.
  • Lowering/raising control gives smooth positive action. Height of lift can be adjusted.
  • Thumbwheel (Vertical tracking angle VTA) height adjustment.
  • Bedplate affords +/- 12.0mm movement to facilitate (Horizontal tracking angle HTA) adjustment.
  • Base slides on bedplate for horizontal tracking adjustment with double null-point protractor.
  • Tungsten-alloy balance weight inserts allow maximum centre of gravity shift to balance a greater range of cartridges up to 38g in S2-R headshell and direct plug-in heads up to 46g.
  • Precise vertical tracking force up to 5g applied in 0,5g increments via rider weight and graduated wayrod.
  • Fluid damper FD-M2 is available as an optional extra.
  • Alignment protractor designed to provide HTA settings with the greatest accuracy.
  • Internal wiring in LCOFC.
  • Balanced Hybrid Cable 1.2M audio lead with gold plated phono plugs.

A - Distance from pivot to stylus 308.81mm   Effective Mass 18.0g
B - Distance from pivot to turntable centre 295.60mm   Cartridge balance range:
C - Cartridge fixing centres 12.70mm   In S2-R headshell: up to 38.0g
D - Offset angle 17.62º   Plug-in heads: up to 46.0g
E - Linear offset 93.47mm   Vertical tracking force VTF: up to 5.0g
F - Overhang 13.21mm   Maximum tracking error 0.01º/mm
G - Height above mounting surface 87.00mm max   Null points: Inner radius 66.04mm
  63.00mm min   Outer radius 120.90mm
H - Mounting surface to underside of headshell 69.75mm max   Weight: net 834.0g
  45.75mm min   Audio Lead:
J - Depth below mounting surface 46.00mm   1.2m balanced hybrid cable with gold plated connectors
K - Balance weight radial clearance 85.00mm
